Bottle Aid Mechanical Concept

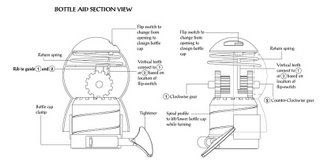

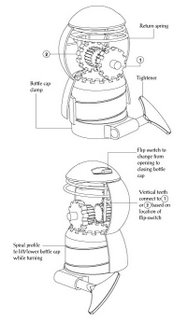

Here is the concept for the mechanical design.

1. Places the device over the bottle cap, then clamp it by twisting the handle below. (the lower cylinders are hollow.

2. Press the top dome repeatedly. The gear will turn the clamp with every press.

3. To close the bottle, flip the switch at the top to the opposite direction, and repeat step 2. The gear will turn the clamp in the opposite direction.

Click on image to enlarge
